Dtk_Table Class Reference

Represents the tables. More...

Inheritance diagram for Dtk_Table:

Public Member Functions
virtual Dtk_ErrorStatus	_Store (void *)
void	AddAdditionnalGeometries (const Dtk_tab< Dtk_EntityPtr > &inAdditionnalGeometries)
	Adds some additionnal geometries to the Dtk_2dEntity. More...
void	AddAdditionnalGeometry (const Dtk_EntityPtr &inAdditionnalGeometry)
	Adds an additionnal geometry to the Dtk_2dEntity. More...
void	AddAdditionnalTexts (Dtk_CompositeText inAddtionnalTexts)
	Adds some additionnal texts to the Dtk_2dEntity. More...
Dtk_ErrorStatus	AddLeader (const Dtk_LeaderPtr &leader)
	Adds a leader to the Dtk_Annotation. More...
Dtk_Size_t &	Cell_Col (const Dtk_Size_t inPos)
	Sets the number of cells of the ith columns. More...
const Dtk_Size_t &	Cell_Col (const Dtk_Size_t inPos) const
	Gets the number of cells in each column. More...
Dtk_Size_t &	Cell_Line (const Dtk_Size_t inPos)
	Sets the number of cells of the (i)th line. More...
const Dtk_Size_t &	Cell_Line (const Dtk_Size_t inPos) const
	Gets the number of cells in each line. More...
Dtk_Int32	DtkDynamicType (const Dtk_Int32 &inId)
	Retrieves the dynamic entity type. More...
int	DtkDynamicType (const int &inId)
virtual void	dump (FILE *file=stdout)
Dtk_InfoPtr	get_info () const
type_detk	get_type_detk () const
const Dtk_tab< Dtk_EntityPtr > &	GetAdditionnalGeometries () const
	Retrieves the additionnal geometries of the Dtk_2dEntity. More...
const Dtk_CompositeText &	GetAdditionnalTexts () const
	Retrieves the additionnal texts of the Dtk_2dEntity. More...
Dtk_ErrorStatus	GetAnchorPoints (Dtk_pnt(&outTabPnts)[DTK_NB_ANCHOR_TYPES]) const
	Processes all the Dtk_Annotation anchor points. More...
Dtk_OneCell &	getCell (const Dtk_Size_t &inRow, const Dtk_Size_t &inCol)
const Dtk_OneCell &	getCell (const Dtk_Size_t &inRow, const Dtk_Size_t &inCol) const
const Dtk_ID &	GetID () const
	Get Internal UniqueID. More...
Dtk_LeaderPtr	GetLeader (const Dtk_Size_t &inPos) const
	Gets the i'th leader. More...
virtual Dtk_pnt	GetLocation () const
	Get the annoation location point. More...
const Dtk_anchor_type &	GetLocationAnchorType () const
	Gets the location anchor type - read only -. More...
Dtk_Size_t	getNbcols ()
	Gets the number of colums in Dtk_Table. More...
Dtk_Size_t	getNbrows ()
	Gets the number of rows in Dtk_Table. More...
Dtk_Size_t	GetNumCols () const
	Gets the Dtk_Table columns number. More...
Dtk_Size_t	GetNumLeaders () const
	Retrieves the number of leaders. More...
Dtk_Size_t	GetNumRows () const
	Gets the Dtk_Table rows number. More...
Dtk_Double64	GetOffset () const
	Gets the annotation offset - read only -. More...
Dtk_Double64	GetRotationAngle (const Dtk_dir &inXAxis=Dtk_dir(1, 0, 0), const Dtk_dir &inYAxis=Dtk_dir(0, 1, 0)) const
	Gets the text rotation angle giving a reference base. More...
virtual Dtk_Size_t	GetSize () const
Dtk_dir	GetXAxis () const
	Get the X Axis - read only -. More...
Dtk_dir	GetYAxis () const
	Get the Y Axis - read only -. More...
Dtk_InfoPtr &	info ()
virtual void	PrepareTransfo ()
Dtk_ErrorStatus	ProcessTextsPlacement ()
	Processes internal annotation placement - internal use only -. More...
virtual Dtk_ErrorStatus	Reverse ()
	Reverses the Dtk_Annotation. More...
void	Set_Texts (const Dtk_Size_t &inRowIdx, const Dtk_Size_t &inColIdx, Dtk_CompositeText inText)
	Sets the (inRowIdx,inColIdx)th text. More...
Dtk_ErrorStatus	SetAnchorPoint (const Dtk_pnt &inNewLocation, const Dtk_anchor_type &inLocationAnchorType)
	Sets the Dtk_Annotation anchor point. More...
	SetAsDeprecated ("Undefined", "Use Dtk_TextStyle::Justification()") Dtk_justication_type GetJustification() const
	Get the justification type - read only -. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &inLocation)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetLocation (const Dtk_pnt &location, const Dtk_anchor_type &inAnchorType)
	Sets the location point of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetOffset (const Dtk_Double64 &inOffset)
	Sets the offset of the Dtk_Annotation. More...
Dtk_ErrorStatus	SetRotationAngle (const Dtk_Double64 &inRotationAngle)
	Sets the annotation angle using the annotation base. More...
Dtk_CompositeText &	Text (const Dtk_Size_t &inRow, const Dtk_Size_t &inCol)
const Dtk_CompositeText &	Text (const Dtk_Size_t &inRow, const Dtk_Size_t &inCol) const
	Gets the (i,j)th text - get/set -. More...
Dtk_ErrorStatus	Transform (const Dtk_transfo &inTransfo)
	Applies a transformation matrix to the entity. //! More...

Static Public Member Functions
static Dtk_TablePtr	Create (const Dtk_Int32 &inNumRows, const Dtk_Int32 &inNumCols, const Dtk_pnt &inLocationPnt=Dtk_pnt(0, 0, 0), const Dtk_Double64 &inAngle=0.0, const Dtk_InfoPtr &infos=NULL, Dtk_tab< Dtk_LeaderPtr > inLeadersArray=Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 &inOffSet=0.0, const Dtk_anchor_type &inAnchorType=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type &inJustificationType=DTK_JUSTIFY_LEFT)
	Calls full featured constructor to allocate a new object. More...
static Dtk_TablePtr	Create (const Dtk_Table &in)
	CreateCopy{in}. More...
static Dtk_Table *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Protected Types
enum	{ _typeID = DTK_TYPE_2D_ENTITY }
enum	{ _typeID = DTK_TYPE_ENTITY }
enum	{ _typeID = DTK_TYPE_ANNOTATION }
enum	{ _typeID = DTK_TYPE_TABLE }

Protected Member Functions
void	_CheckRowCol (const Dtk_Size_t inRow, const Dtk_Size_t inCol) const
void	_Copy (const Dtk_2dEntity &s)
void	_copy (const Dtk_Entity &s)
void	_init ()
void	_reset ()
virtual Dtk_Object *	Clone ()
	Dtk_Table ()
	Default constructor. More...
	Dtk_Table (const Dtk_Int32 &inNumRows, const Dtk_Int32 &inNumCols, const Dtk_pnt &inLocationPnt=Dtk_pnt(0, 0, 0), const Dtk_Double64 &inAngle=0.0, const Dtk_InfoPtr &infos=NULL, Dtk_tab< Dtk_LeaderPtr > inLeadersArray=Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 &inOffSet=0.0, const Dtk_anchor_type &inAnchorType=DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type &inJustificationType=DTK_JUSTIFY_LEFT)
	Dtk_Table (const Dtk_Table &tab)
Dtk_OneCell *	operator[] (const Dtk_Size_t &inPos)
const Dtk_OneCell *	operator[] (const Dtk_Size_t &inPos) const
	~Dtk_Table ()
	Destructor. More...

Protected Attributes
Dtk_Handle *	_Private
unsigned long	count_
Dtk_tab< Dtk_Size_t >	nbCells_Col
	number of cells on each column (if we consider mergers) More...
Dtk_tab< Dtk_Size_t >	nbCells_Line
	number of cells on each line (if we consider mergers) More...
Dtk_Size_t	nbCol
	Number of columns. More...
Dtk_Size_t	nbRows
	Number of lines. More...
Dtk_OneCell **	tableOfCell
	A table of cells. More...

Detailed Description

Represents the tables.

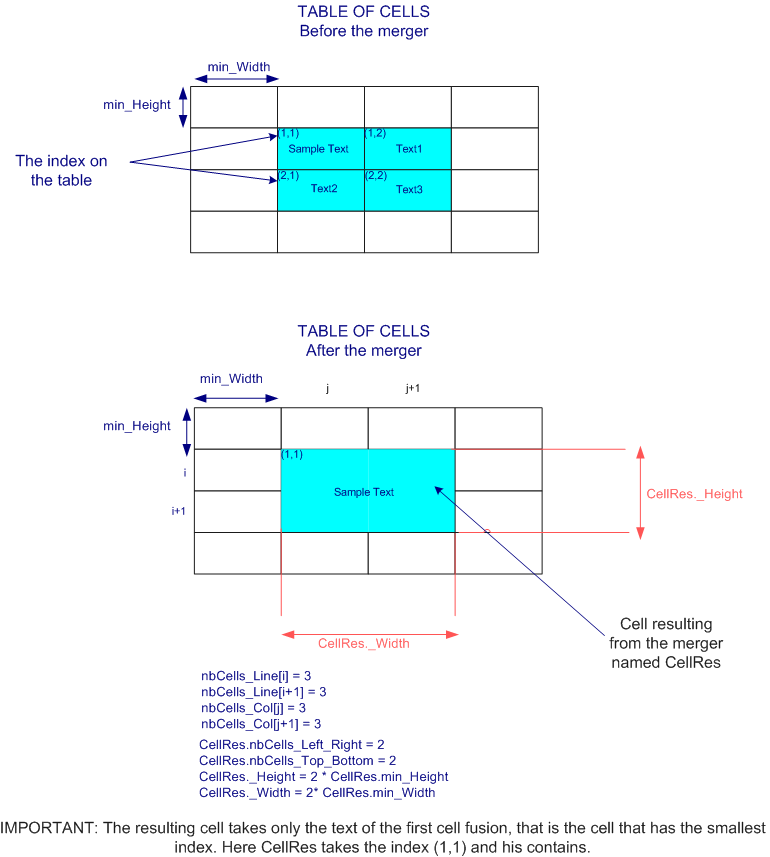

nbCells_Line : number of cells on each line (if we consider mergers).

nbCells_Col : number of cells on each column (if we consider mergers).

Example:

See also

Dtk_OneCell

Use Dtk_TablePtr class to handle it.

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_2D_ENTITY
     };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

{ _typeID = DTK_TYPE_ENTITY };

anonymous enum

anonymous enum

protectedinherited

Enumerator
_typeID

          {
          _typeID = DTK_TYPE_ANNOTATION
     };

anonymous enum

anonymous enum

protected

Enumerator
_typeID

     {
          _typeID = DTK_TYPE_TABLE
     };

Constructor & Destructor Documentation

Dtk_Table() [1/3]

Dtk_Table::Dtk_Table ( )

protected

Default constructor.

Dtk_Table() [2/3]

Dtk_Table::Dtk_Table ( const Dtk_Table &  tab )

protected

See also

Create(const Dtk_Table &)

Dtk_Table() [3/3]

Dtk_Table::Dtk_Table ( const Dtk_Int32 &  inNumRows, const Dtk_Int32 &  inNumCols, const Dtk_pnt &  inLocationPnt = Dtk_pnt(0, 0, 0), const Dtk_Double64 &  inAngle = 0.0, const Dtk_InfoPtr &  infos = NULL, Dtk_tab< Dtk_LeaderPtr >  inLeadersArray = Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 &  inOffSet = 0.0, const Dtk_anchor_type &  inAnchorType = DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type &  inJustificationType = DTK_JUSTIFY_LEFT  )

protected

See also

Create(const Dtk_Int32&, const Dtk_Int32&, const Dtk_pnt &,const Dtk_Double64 &, const Dtk_InfoPtr &,const Dtk_tab<Dtk_LeaderPtr> &,const Dtk_Double64 &, const Dtk_anchor_type &,const Dtk_justication_type &) Dtk_Annotation();

~Dtk_Table()

Dtk_Table::~Dtk_Table ( )

protected

Destructor.

Member Function Documentation

_CheckRowCol()

void Dtk_Table::_CheckRowCol ( const Dtk_Size_t  inRow, const Dtk_Size_t  inCol  ) const

protected

_Copy()

void Dtk_2dEntity::_Copy ( const Dtk_2dEntity &  s )

protectedinherited

_copy()

void Dtk_Entity::_copy ( const Dtk_Entity &  s )

protectedinherited

_init()

void Dtk_Entity::_init ( )

protectedinherited

_reset()

void Dtk_Entity::_reset ( )

protectedinherited

_Store()

virtual Dtk_ErrorStatus Dtk_Entity::_Store ( void *  )

virtualinherited

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

AddAdditionnalGeometries()

void Dtk_2dEntity::AddAdditionnalGeometries ( const Dtk_tab< Dtk_EntityPtr > &  inAdditionnalGeometries )

inherited

Adds some additionnal geometries to the Dtk_2dEntity.

Parameters

inAdditionnalGeometries

The geometries to be added

AddAdditionnalGeometry()

void Dtk_2dEntity::AddAdditionnalGeometry ( const Dtk_EntityPtr &  inAdditionnalGeometry )

inherited

Adds an additionnal geometry to the Dtk_2dEntity.

Parameters

inAdditionnalGeometry

The geometry to be added

AddAdditionnalTexts()

void Dtk_2dEntity::AddAdditionnalTexts ( Dtk_CompositeText  inAddtionnalTexts )

inherited

Adds some additionnal texts to the Dtk_2dEntity.

Parameters

inAddtionnalTexts

The texts to be added

AddLeader()

Dtk_ErrorStatus Dtk_Annotation::AddLeader ( const Dtk_LeaderPtr &  leader )

inherited

Adds a leader to the Dtk_Annotation.

Parameters

leader

The leader to be added

Returns

dtkNoError is OK

Remarks

If Added leader is NULL, so no leader is added.

Cell_Col() [1/2]

Dtk_Size_t& Dtk_Table::Cell_Col

(

const Dtk_Size_t

inPos

)

Sets the number of cells of the ith columns.

Parameters

i	Column number
inNewVal	The new number witch represents the number of cell of the ith Column

Cell_Col() [2/2]

const Dtk_Size_t& Dtk_Table::Cell_Col

(

const Dtk_Size_t

inPos

)

const

Gets the number of cells in each column.

Returns

the number of cells in each column

Cell_Line() [1/2]

Dtk_Size_t& Dtk_Table::Cell_Line

(

const Dtk_Size_t

inPos

)

Sets the number of cells of the (i)th line.

Parameters

i	Line number
inNewVal	The new number witch represents the number of cell of the ith row

Cell_Line() [2/2]

const Dtk_Size_t& Dtk_Table::Cell_Line

(

const Dtk_Size_t

inPos

)

const

Gets the number of cells in each line.

Returns

the number of cells in each line

Clone()

virtual Dtk_Object* Dtk_Table::Clone ( )

protectedvirtual

Implements Dtk_Annotation.

{ return new Dtk_Table(*this); }

Create() [1/2]

static Dtk_TablePtr Dtk_Table::Create ( const Dtk_Int32 &  inNumRows, const Dtk_Int32 &  inNumCols, const Dtk_pnt &  inLocationPnt = Dtk_pnt(0, 0, 0), const Dtk_Double64 &  inAngle = 0.0, const Dtk_InfoPtr &  infos = NULL, Dtk_tab< Dtk_LeaderPtr >  inLeadersArray = Dtk_tab< Dtk_LeaderPtr >(), const Dtk_Double64 &  inOffSet = 0.0, const Dtk_anchor_type &  inAnchorType = DTK_ANCHOR_BOTTOM_LEFT, const Dtk_justication_type &  inJustificationType = DTK_JUSTIFY_LEFT  )

static

Calls full featured constructor to allocate a new object.

Parameters

inNumRows	Rows number in the Dtk_Table
inNumCols	Columns number in the Dtk_Table
inLocationPnt	The Dtk_Table location
inAngle	Angle
inInfos	Dtk_Table infos
inLeadersArray	Leaders array
inOffSet	Offset
inAnchorType	Dtk_Table anchor type
inJustificationType	Justification type

Returns

The created Dtk_TablePtr

Create() [2/2]

static Dtk_TablePtr Dtk_Table::Create ( const Dtk_Table &  in )

static

CreateCopy{in}.

DtkDynamicCast()

static Dtk_Table* Dtk_Table::DtkDynamicCast ( Dtk_Object *  s )

static

Performs a dynamic cast - doesn't need RTTI -.

DtkDynamicType() [1/2]

Dtk_Int32 Dtk_Table::DtkDynamicType

(

const Dtk_Int32 &

inId

)

Retrieves the dynamic entity type.

DtkDynamicType() [2/2]

int Dtk_Entity::DtkDynamicType ( const int &  inId )

virtualinherited

Implements Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_TopologicalEntity, Dtk_MeshSurface, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, Dtk_Point, Dtk_Constraint, Dtk_ConstraintReference, and Dtk_AxisSystem.

dump()

virtual void Dtk_Object::dump ( FILE *  file = stdout )

virtualinherited

get_info()

Dtk_InfoPtr Dtk_Entity::get_info ( ) const

inherited

get_type_detk()

type_detk Dtk_Table::get_type_detk ( ) const

virtual

Returns

The type of the entity type - DTK_TYPE_TABLE-

Implements Dtk_Annotation.

{ return DTK_TYPE_TABLE; }

GetAdditionnalGeometries()

const Dtk_tab< Dtk_EntityPtr >& Dtk_2dEntity::GetAdditionnalGeometries ( ) const

inherited

Retrieves the additionnal geometries of the Dtk_2dEntity.

Returns

The additionnal geometries array - read only -.

GetAdditionnalTexts()

const Dtk_CompositeText& Dtk_2dEntity::GetAdditionnalTexts ( ) const

inherited

Retrieves the additionnal texts of the Dtk_2dEntity.

Returns

The additionnal texts - read only -.

GetAnchorPoints()

Dtk_ErrorStatus Dtk_Table::GetAnchorPoints ( Dtk_pnt(&)  outTabPnts[DTK_NB_ANCHOR_TYPES] ) const

virtual

Processes all the Dtk_Annotation anchor points.

Parameters

outTabPnts

The resulting anchor point array.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

getCell() [1/2]

Dtk_OneCell& Dtk_Table::getCell	(	const Dtk_Size_t &	inRow,
		const Dtk_Size_t &	inCol
	)

Parameters

inRow	Line number
inCol	Column number

Returns

tableOfCell[i][j]

    {
#ifdef _DEBUG_DTK
        _CheckRowCol( inRow, inCol);
#endif
        return operator[](inRow)[inCol];
    }

getCell() [2/2]

const Dtk_OneCell& Dtk_Table::getCell	(	const Dtk_Size_t &	inRow,
		const Dtk_Size_t &	inCol
	)		const

    {
#ifdef _DEBUG_DTK
        _CheckRowCol( inRow, inCol);
#endif
        return operator[](inRow)[inCol];
    }

GetID()

const Dtk_ID& Dtk_Entity::GetID ( ) const

inherited

Get Internal UniqueID.

Returns

InternalID

GetLeader()

Dtk_LeaderPtr Dtk_Annotation::GetLeader ( const Dtk_Size_t &  inPos ) const

inherited

Gets the i'th leader.

Parameters

inPos

The leader position - 0 indexed -

Returns

The inPos'th leader

GetLocation()

virtual Dtk_pnt Dtk_Annotation::GetLocation ( ) const

virtualinherited

Get the annoation location point.

Returns

The location point

GetLocationAnchorType()

const Dtk_anchor_type& Dtk_Annotation::GetLocationAnchorType ( ) const

inherited

Gets the location anchor type - read only -.

Returns

The location anchor type.

getNbcols()

Dtk_Size_t Dtk_Table::getNbcols

(

)

Gets the number of colums in Dtk_Table.

Returns

the number of columns

getNbrows()

Dtk_Size_t Dtk_Table::getNbrows

(

)

Gets the number of rows in Dtk_Table.

Returns

the number of rows

GetNumCols()

Dtk_Size_t Dtk_Table::GetNumCols

(

)

const

Gets the Dtk_Table columns number.

Returns

The columns number.

GetNumLeaders()

Dtk_Size_t Dtk_Annotation::GetNumLeaders ( ) const

inherited

Retrieves the number of leaders.

Returns

The number of leaders

GetNumRows()

Dtk_Size_t Dtk_Table::GetNumRows

(

)

const

Gets the Dtk_Table rows number.

Returns

The rows number.

GetOffset()

Dtk_Double64 Dtk_Annotation::GetOffset ( ) const

inherited

Gets the annotation offset - read only -.

Returns

The annotation offset.

Warning

For internal use only

GetRotationAngle()

Dtk_Double64 Dtk_Annotation::GetRotationAngle ( const Dtk_dir &  inXAxis = Dtk_dir(1, 0, 0), const Dtk_dir &  inYAxis = Dtk_dir(0, 1, 0)  ) const

inherited

Gets the text rotation angle giving a reference base.

Parameters

inXAxis	The reference X Axis - default value = (1,0,0) -
inYAxis	The reference Y Axis - default value = (0,1,0) -

Returns

The rotation angle.

GetSize()

virtual Dtk_Size_t Dtk_Entity::GetSize ( ) const

virtualinherited

Reimplemented from Dtk_Object.

Reimplemented in Dtk_Shell, Dtk_Body, Dtk_Lump, Dtk_Volume, Dtk_Face, Dtk_Loop, Dtk_Coedge, Dtk_Edge, Dtk_Vertex, Dtk_mesh, Dtk_TransformedSurface, Dtk_FilletSurface, Dtk_OffsetSurface, Dtk_SphericalSurface, Dtk_ToroidalSurface, Dtk_ConicalSurface, Dtk_CylindricalSurface, Dtk_RuledSurface, Dtk_LinearExtrusionSurface, Dtk_StandardRevolutionSurface, Dtk_RevolutionSurface, Dtk_PlaneSurface, Dtk_NurbsSurface, Dtk_Surface, Dtk_Hyperbola, Dtk_Parabola, Dtk_Ellipse, Dtk_Conic, Dtk_Line, Dtk_Polyline, Dtk_NurbsCurve, Dtk_Curve, and Dtk_Point.

GetXAxis()

Dtk_dir Dtk_Annotation::GetXAxis ( ) const

inherited

Get the X Axis - read only -.

Returns

The X Axis.

GetYAxis()

Dtk_dir Dtk_Annotation::GetYAxis ( ) const

inherited

Get the Y Axis - read only -.

Returns

The Y Axis.

info()

Dtk_InfoPtr& Dtk_Entity::info ( )

inherited

operator[]() [1/2]

Dtk_OneCell* Dtk_Table::operator[] ( const Dtk_Size_t &  inPos )

protected

operator[]() [2/2]

const Dtk_OneCell* Dtk_Table::operator[] ( const Dtk_Size_t &  inPos ) const

protected

PrepareTransfo()

virtual void Dtk_Entity::PrepareTransfo ( )

virtualinherited

Reimplemented in Dtk_OffsetSurface.

ProcessTextsPlacement()

Dtk_ErrorStatus Dtk_Table::ProcessTextsPlacement

(

)

Processes internal annotation placement - internal use only -.

Returns

dtkNoError if OK

Reverse()

virtual Dtk_ErrorStatus Dtk_Annotation::Reverse ( )

virtualinherited

Reverses the Dtk_Annotation.

Reimplemented in Dtk_DatumTarget.

Set_Texts()

void Dtk_Table::Set_Texts	(	const Dtk_Size_t &	inRowIdx,
		const Dtk_Size_t &	inColIdx,
		Dtk_CompositeText	inText
	)

Sets the (inRowIdx,inColIdx)th text.

Parameters

inRowIdx	Line index - 0 based -
inColIdx	column index - 0 based -
inText	Text be put.

SetAnchorPoint()

Dtk_ErrorStatus Dtk_Table::SetAnchorPoint ( const Dtk_pnt &  inNewLocation, const Dtk_anchor_type &  inLocationAnchorType  )

virtual

Sets the Dtk_Annotation anchor point.

Parameters

inNewLocation	The new location point.
inLocationAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetAsDeprecated()

Dtk_Annotation::SetAsDeprecated ( "Undefined"  , "Use Dtk_TextStyle::Justification()"    ) const

inherited

Get the justification type - read only -.

Returns

The justification type

Deprecated:

use the Dtk_TextStyle::Justification() instead

SetLocation() [1/2]

Dtk_ErrorStatus Dtk_Table::SetLocation ( const Dtk_pnt &  inLocation )

virtual

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

inLocation

the location point

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetLocation() [2/2]

Dtk_ErrorStatus Dtk_Annotation::SetLocation ( const Dtk_pnt &  location, const Dtk_anchor_type &  inAnchorType  )

inherited

Sets the location point of the Dtk_Annotation.

The location point is related to the anchor type

Parameters

location	the location point
inAnchorType	The anchor type related to the new location.

Returns

dtkNoError if OK

SetOffset()

Dtk_ErrorStatus Dtk_Table::SetOffset ( const Dtk_Double64 &  inOffset )

virtual

Sets the offset of the Dtk_Annotation.

The Offset is used to process bounding frames.

Parameters

inOffset

The offset

Returns

dtkNoError if OK

Implements Dtk_Annotation.

SetRotationAngle()

Dtk_ErrorStatus Dtk_Table::SetRotationAngle ( const Dtk_Double64 &  inRotationAngle )

virtual

Sets the annotation angle using the annotation base.

Parameters

inRotationAngle

The rotation angle to be set

Returns

dtkNoError if OK

Reimplemented from Dtk_Annotation.

Text() [1/2]

Dtk_CompositeText& Dtk_Table::Text	(	const Dtk_Size_t &	inRow,
		const Dtk_Size_t &	inCol
	)

Text() [2/2]

const Dtk_CompositeText& Dtk_Table::Text	(	const Dtk_Size_t &	inRow,
		const Dtk_Size_t &	inCol
	)		const

Gets the (i,j)th text - get/set -.

Parameters

inRow	Text row index - 0 based -
inCol	Text column index - 0 based -

Returns

The (inRow, inCol)th text.

See also

Text(const Dtk_Size_t &, const Dtk_Size_t &) const

SetText(const Dtk_Size_t &, const Dtk_Size_t &, const Dtk_CompositeText &)

Transform()

Dtk_ErrorStatus Dtk_Table::Transform ( const Dtk_transfo &  inTransfo )

virtual

Applies a transformation matrix to the entity. //!

Parameters

inTransfo

The transformation matrix to apply.

Implements Dtk_Annotation.

Field Documentation

_Private

Dtk_Handle* Dtk_Annotation::_Private

protectedinherited

count_

unsigned long Dtk_Object::count_

protectedinherited

nbCells_Col

Dtk_tab< Dtk_Size_t > Dtk_Table::nbCells_Col

protected

number of cells on each column (if we consider mergers)

nbCells_Line

Dtk_tab< Dtk_Size_t > Dtk_Table::nbCells_Line

protected

number of cells on each line (if we consider mergers)

nbCol

Dtk_Size_t Dtk_Table::nbCol

protected

Number of columns.

nbRows

Dtk_Size_t Dtk_Table::nbRows

protected

Number of lines.

tableOfCell

Dtk_OneCell** Dtk_Table::tableOfCell

protected

A table of cells.
