Allows the representation of cell. More...

Public Member Functions
void	AddAdditionnalGeometries (Dtk_tab< Dtk_EntityPtr > inAdditionnalGeometries)
	Adds some additionnal geometries to the Dtk_OneCell. More...

void	Delete_Text ()
	Affects _text to null in order not to read the text which is inside. More...

	Dtk_OneCell ()
	Base constructor. More...

	Dtk_OneCell (const Dtk_OneCell &in)
	Copy constructor. More...

	Dtk_OneCell (Dtk_OneCell &&in) DTK_NOEXCEPT
	Move constructor. More...

Dtk_Int32	DtkDynamicType (const int &inId)
	Retrieves the dynamic entity type. More...

Dtk_Double64	get_min_Height ()
	Gets the original height. More...

Dtk_Double64	get_min_Width ()
	Gets the original width of the Dtk_Onecell. More...

const Dtk_tab< Dtk_EntityPtr > &	GetAdditionnalGeometries () const
	Retrieves the additionnal geometries of the Dtk_OneCell. More...

Dtk_Size_t &	getAnchor ()
	Gets the Dtk_OneCell anchor. More...

Dtk_Int32	GetBorderBottomBlanked ()
	Gets BorderBottomBlanked of Bottom border. More...

const Dtk_RGB &	GetBorderBottomColor ()
	Gets BorderBottomColor of Bottom border. More...

Dtk_Int32	GetBorderLeftBlanked ()
	Gets BorderLeftBlanked of Left border. More...

const Dtk_RGB &	GetBorderLeftColor ()
	Gets BorderLeftColor of Left border. More...

Dtk_Int32	GetBorderRightBlanked ()
	Gets BorderRightBlanked of Right border. More...

const Dtk_RGB &	GetBorderRightColor ()
	Gets BorderRightColor of Right border. More...

Dtk_Int32	GetBorderTopBlanked ()
	Gets BorderTopBlanked of Top border. More...

const Dtk_RGB &	GetBorderTopColor ()
	Gets BorderTopColor of Top border. More...

Dtk_Double64	getHeight () const
	Gets the height of the Dtk_OneCell. More...

Dtk_justication_type &	getJustification ()
	Gets the Dtk_OneCell justification. More...

Dtk_Int32	getnbCells_Left_Right () const
	Gets the Dtk_OneCell nbCells_Left_Right. More...

Dtk_Int32	getnbCells_Top_Bottom () const
	Gets the number of cells at the bottom or left of the Dtk_OneCell. More...

Dtk_CompositeText &	GetText ()
	Gets the text witch is in the Dtk_OneCell. More...

const Dtk_CompositeText &	GetText () const

Dtk_Double64	getWidth () const
	Gets the width of the Dtk_OneCell. More...

Dtk_bool	HasText () const

bool	Merged_Cell_Horizontally ()
	Tests if the cell is composed of cells merged horizontally. More...

bool	Merged_Cell_Vertically ()
	tests if the cell is composed of cells merged vertically. More...

Dtk_OneCell &	operator= (const Dtk_OneCell &in)
	Copy assignment operator. More...

Dtk_OneCell &	operator= (Dtk_OneCell &&in)
	Move assignment operator. More...

void	set_min_Height (const double &inHeight)
	Sets the Dtk_OneCell min_Height. More...

void	set_min_Width (const double &min_Width)
	Sets the Dtk_OneCell min_Width. More...

void	setAnchor (const Dtk_Size_t &inNumberOfAnchor)
	Set anchor of text. More...

void	SetBorderBottomBlanked (const Dtk_Int32 &inBorderBottomBlanked)
	Sets BorderBottomBlanked of Bottom border. More...

void	SetBorderBottomColor (const Dtk_Int32 &inBorderBottomColor)
	Sets BorderBottomColor of Bottom border. More...

void	SetBorderBottomColor (const Dtk_RGB &inBorderBottomColor)

void	SetBorderLeftBlanked (const Dtk_Int32 &inBorderLeftBlanked)
	Sets BorderLeftBlanked of Left border. More...

void	SetBorderLeftColor (const Dtk_Int32 &inBorderLeftColor)
	Sets BorderLeftColor of Left border. More...

void	SetBorderLeftColor (const Dtk_RGB &inBorderLeftColor)

void	SetBorderRightBlanked (const Dtk_Int32 &inBorderRightBlanked)
	Sets BorderRightBlanked of Right border. More...

void	SetBorderRightColor (const Dtk_Int32 &inBorderRightColor)
	Sets BorderRightColor of Right border. More...

void	SetBorderRightColor (const Dtk_RGB &inBorderRightColor)

void	SetBorderTopBlanked (const Dtk_Int32 &inBorderTopBlanked)
	Sets BorderTopBlanked of Top border. More...

void	SetBorderTopColor (const Dtk_Int32 &inBorderTopColor)
	Sets BorderTopColor of Top border. More...

void	SetBorderTopColor (const Dtk_RGB &inBorderTopColor)

void	setHeight (const double &inHeight)
	Sets the Dtk_OneCell height. More...

void	setJustification (const Dtk_justication_type &inNewJustification)
	Sets justification. More...

void	setnbCells_Left_Right (const Dtk_Size_t &inNewVal)
	Sets nbCells_Left_Right. More...

void	setnbCells_Top_Bottom (const Dtk_Size_t &inNewVal)
	Sets nbCells_Top_Bottom. More...

void	SetText (Dtk_CompositeText text)
	Sets the text in the Dtk_OneCell. More...

void	setWidth (const double &inWidth)
	Sets the Dtk_OneCell Width. More...

	~Dtk_OneCell ()
	Destructor. More...

Static Public Member Functions
static Dtk_OneCell *	DtkDynamicCast (Dtk_Object *s)
	Performs a dynamic cast - doesn't need RTTI -. More...

Protected Types
enum	{ _typeID = DTK_TYPE_CELL }

Protected Member Functions
void	_CopyC (const Dtk_OneCell &cell)

void	_InitC ()

void	_ResetC ()

Protected Attributes
Dtk_tab< Dtk_EntityPtr >	_AdditionnalGeometries
	Added geometries for Dtk_OneCell. More...

Dtk_Int32	_BorderBottomBlanked

Dtk_RGB	_BorderBottomColor

Dtk_Int32	_BorderLeftBlanked

Dtk_RGB	_BorderLeftColor

Dtk_Int32	_BorderRightBlanked

Dtk_RGB	_BorderRightColor

Dtk_Int32	_BorderTopBlanked

Dtk_RGB	_BorderTopColor

Dtk_bool	_HasText

Dtk_Double64	_Height
	The real height (before and after mergers). More...

Dtk_CompositeText	_text

Dtk_Double64	_Width
	The real width (before and after mergers). More...

Dtk_Size_t	anchor
	Defines the anchor texts. More...

Dtk_justication_type	justification
	Text justification. More...

Dtk_Double64	min_Height
	The original height before mergers. More...

Dtk_Double64	min_Width
	The original width before mergers. More...

Dtk_Int32	nbCells_Left_Right
	Number of adjacent cells to the left or right. More...

Dtk_Int32	nbCells_Top_Bottom
	Number of adjacent cells at the top or bottom. More...

Detailed Description

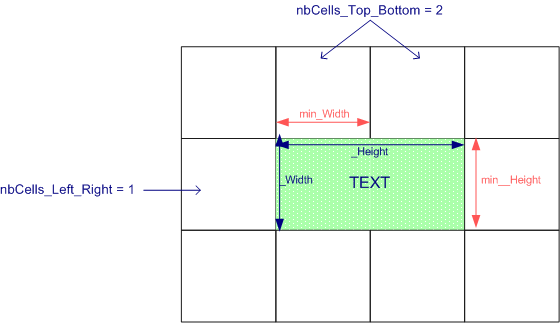

Allows the representation of cell.

min_Height: The original height before mergers.

min_Width: The original width before mergers.

nbCells_Left_Right: Number of adjacent cells to the left or right.

nbCells_Top_Bottom: Number of adjacent cells at the top or bottom.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
_typeID

      {
           _typeID = DTK_TYPE_CELL
      };

Constructor & Destructor Documentation

◆ Dtk_OneCell() [1/3]

Dtk_OneCell::Dtk_OneCell ( )

Base constructor.

◆ Dtk_OneCell() [2/3]

Dtk_OneCell::Dtk_OneCell ( const Dtk_OneCell & in )

Copy constructor.

Parameters

in	Object to copy from.

◆ Dtk_OneCell() [3/3]

Dtk_OneCell::Dtk_OneCell ( Dtk_OneCell && in )

Move constructor.

Parameters

in	Object to move from.

◆ ~Dtk_OneCell()

Dtk_OneCell::~Dtk_OneCell ( )

Destructor.

Member Function Documentation

◆ _CopyC()

void Dtk_OneCell::_CopyC ( const Dtk_OneCell & cell )

protected

◆ _InitC()

void Dtk_OneCell::_InitC ( )

protected

◆ _ResetC()

void Dtk_OneCell::_ResetC ( )

protected

◆ AddAdditionnalGeometries()

void Dtk_OneCell::AddAdditionnalGeometries ( Dtk_tab< Dtk_EntityPtr > inAdditionnalGeometries )

Adds some additionnal geometries to the Dtk_OneCell.

Parameters

inAdditionnalGeometries The geometries to be added

◆ Delete_Text()

void Dtk_OneCell::Delete_Text ( )

Affects _text to null in order not to read the text which is inside.

◆ DtkDynamicCast()

static Dtk_OneCell* Dtk_OneCell::DtkDynamicCast ( Dtk_Object * s )

static

Performs a dynamic cast - doesn't need RTTI -.

◆ DtkDynamicType()

Dtk_Int32 Dtk_OneCell::DtkDynamicType ( const int & inId )

Retrieves the dynamic entity type.

◆ get_min_Height()

Dtk_Double64 Dtk_OneCell::get_min_Height ( )

Gets the original height.

Returns: min_Height

◆ get_min_Width()

Dtk_Double64 Dtk_OneCell::get_min_Width ( )

Gets the original width of the Dtk_Onecell.

Returns: min_Width

◆ GetAdditionnalGeometries()

const Dtk_tab< Dtk_EntityPtr >& Dtk_OneCell::GetAdditionnalGeometries ( ) const

Retrieves the additionnal geometries of the Dtk_OneCell.

Returns: The additionnal geometries array - read only -.

◆ getAnchor()

Dtk_Size_t& Dtk_OneCell::getAnchor ( )

Gets the Dtk_OneCell anchor.

Returns: anchor;

◆ GetBorderBottomBlanked()

Dtk_Int32 Dtk_OneCell::GetBorderBottomBlanked ( )

Gets BorderBottomBlanked of Bottom border.

Returns: BorderBottomBlanked DTK_TRUE is blanked

◆ GetBorderBottomColor()

const Dtk_RGB& Dtk_OneCell::GetBorderBottomColor ( )

Gets BorderBottomColor of Bottom border.

Returns: BorderBottomColor

◆ GetBorderLeftBlanked()

Dtk_Int32 Dtk_OneCell::GetBorderLeftBlanked ( )

Gets BorderLeftBlanked of Left border.

Returns: BorderLeftBlanked DTK_TRUE is blanked

◆ GetBorderLeftColor()

const Dtk_RGB& Dtk_OneCell::GetBorderLeftColor ( )

Gets BorderLeftColor of Left border.

Returns: BorderLeftColor

◆ GetBorderRightBlanked()

Dtk_Int32 Dtk_OneCell::GetBorderRightBlanked ( )

Gets BorderRightBlanked of Right border.

Returns: BorderRightBlanked DTK_TRUE is blanked

◆ GetBorderRightColor()

const Dtk_RGB& Dtk_OneCell::GetBorderRightColor ( )

Gets BorderRightColor of Right border.

Returns: BorderRightColor

◆ GetBorderTopBlanked()

Dtk_Int32 Dtk_OneCell::GetBorderTopBlanked ( )

Gets BorderTopBlanked of Top border.

Returns: BorderTopBlanked DTK_TRUE is blanked

◆ GetBorderTopColor()

const Dtk_RGB& Dtk_OneCell::GetBorderTopColor ( )

Gets BorderTopColor of Top border.

Returns: BorderTopColor

◆ getHeight()

Dtk_Double64 Dtk_OneCell::getHeight ( ) const

Gets the height of the Dtk_OneCell.

Returns: _Height

◆ getJustification()

Dtk_justication_type& Dtk_OneCell::getJustification ( )

Gets the Dtk_OneCell justification.

Returns: text justification

◆ getnbCells_Left_Right()

Dtk_Int32 Dtk_OneCell::getnbCells_Left_Right ( ) const

Gets the Dtk_OneCell nbCells_Left_Right.

Returns: nbCells_Left_Right

◆ getnbCells_Top_Bottom()

Dtk_Int32 Dtk_OneCell::getnbCells_Top_Bottom ( ) const

Gets the number of cells at the bottom or left of the Dtk_OneCell.

Returns: nbCells_Top_Bottom

◆ GetText() [1/2]

Dtk_CompositeText& Dtk_OneCell::GetText ( )

Gets the text witch is in the Dtk_OneCell.

Returns: _text

◆ GetText() [2/2]

const Dtk_CompositeText& Dtk_OneCell::GetText ( ) const

◆ getWidth()

Dtk_Double64 Dtk_OneCell::getWidth ( ) const

Gets the width of the Dtk_OneCell.

Returns: _Width

◆ HasText()

Dtk_bool Dtk_OneCell::HasText ( ) const

4105 {return _HasText;}

◆ Merged_Cell_Horizontally()

bool Dtk_OneCell::Merged_Cell_Horizontally ( )

Tests if the cell is composed of cells merged horizontally.

Returns: true or false

◆ Merged_Cell_Vertically()

bool Dtk_OneCell::Merged_Cell_Vertically ( )

tests if the cell is composed of cells merged vertically.

Returns: true or false

◆ operator=() [1/2]

Dtk_OneCell& Dtk_OneCell::operator= ( const Dtk_OneCell & in )

Copy assignment operator.

Parameters

in	Object to copy from.

◆ operator=() [2/2]

Dtk_OneCell& Dtk_OneCell::operator= ( Dtk_OneCell && in )

Move assignment operator.

Parameters

in	Object to move from.

◆ set_min_Height()

void Dtk_OneCell::set_min_Height ( const double & inHeight )

Sets the Dtk_OneCell min_Height.

Parameters

inHeight The new height used to set min_Height

◆ set_min_Width()

void Dtk_OneCell::set_min_Width ( const double & min_Width )

Sets the Dtk_OneCell min_Width.

Parameters

inWidth The new width used to set min_Width

◆ setAnchor()

void Dtk_OneCell::setAnchor ( const Dtk_Size_t & inNumberOfAnchor )

Set anchor of text.

Parameters

inNumberOfAnchor The new number of anchor

◆ SetBorderBottomBlanked()

void Dtk_OneCell::SetBorderBottomBlanked ( const Dtk_Int32 & inBorderBottomBlanked )

Sets BorderBottomBlanked of Bottom border.

Parameters

inBorderBottomBlanked : Blanked Status of the Bottom border

◆ SetBorderBottomColor() [1/2]

void Dtk_OneCell::SetBorderBottomColor ( const Dtk_Int32 & inBorderBottomColor )

Sets BorderBottomColor of Bottom border.

Parameters

inBorderBottomColor : color of the Bottom border

◆ SetBorderBottomColor() [2/2]

void Dtk_OneCell::SetBorderBottomColor ( const Dtk_RGB & inBorderBottomColor )

◆ SetBorderLeftBlanked()

void Dtk_OneCell::SetBorderLeftBlanked ( const Dtk_Int32 & inBorderLeftBlanked )

Sets BorderLeftBlanked of Left border.

Parameters

inBorderLeftBlanked : Blanked Status of the Left border

◆ SetBorderLeftColor() [1/2]

void Dtk_OneCell::SetBorderLeftColor ( const Dtk_Int32 & inBorderLeftColor )

Sets BorderLeftColor of Left border.

Parameters

inBorderLeftColor : color of the Left border

◆ SetBorderLeftColor() [2/2]

void Dtk_OneCell::SetBorderLeftColor ( const Dtk_RGB & inBorderLeftColor )

◆ SetBorderRightBlanked()

void Dtk_OneCell::SetBorderRightBlanked ( const Dtk_Int32 & inBorderRightBlanked )

Sets BorderRightBlanked of Right border.

Parameters

inBorderRightBlanked : Blanked Status of the Right border

◆ SetBorderRightColor() [1/2]

void Dtk_OneCell::SetBorderRightColor ( const Dtk_Int32 & inBorderRightColor )

Sets BorderRightColor of Right border.

Parameters

inBorderRightColor : color of the Right border

◆ SetBorderRightColor() [2/2]

void Dtk_OneCell::SetBorderRightColor ( const Dtk_RGB & inBorderRightColor )

◆ SetBorderTopBlanked()

void Dtk_OneCell::SetBorderTopBlanked ( const Dtk_Int32 & inBorderTopBlanked )

Sets BorderTopBlanked of Top border.

Parameters

inBorderTopBlanked : Blanked Status of the Top border

◆ SetBorderTopColor() [1/2]

void Dtk_OneCell::SetBorderTopColor ( const Dtk_Int32 & inBorderTopColor )

Sets BorderTopColor of Top border.

Parameters

inBorderTopColor : color of the Top border

◆ SetBorderTopColor() [2/2]

void Dtk_OneCell::SetBorderTopColor ( const Dtk_RGB & inBorderTopColor )

◆ setHeight()

void Dtk_OneCell::setHeight ( const double & inHeight )

Sets the Dtk_OneCell height.

Parameters

inHeight The new height used to set _Height

◆ setJustification()

void Dtk_OneCell::setJustification ( const Dtk_justication_type & inNewJustification )

Sets justification.

Parameters

inNewJustification The new Justification

◆ setnbCells_Left_Right()

void Dtk_OneCell::setnbCells_Left_Right ( const Dtk_Size_t & inNewVal )

Sets nbCells_Left_Right.

Parameters

inNewVal The new int used to set nbCells_Left_Right

◆ setnbCells_Top_Bottom()

void Dtk_OneCell::setnbCells_Top_Bottom ( const Dtk_Size_t & inNewVal )

Sets nbCells_Top_Bottom.

Parameters

inNewVal The new int used to set nbCells_Top_Bottom

◆ SetText()

void Dtk_OneCell::SetText ( Dtk_CompositeText text )

Sets the text in the Dtk_OneCell.

Parameters

text	The new text used to set _text

◆ setWidth()

void Dtk_OneCell::setWidth ( const double & inWidth )

Sets the Dtk_OneCell Width.

Parameters

inWidth The new width used to set _Width

Field Documentation

◆ _AdditionnalGeometries

Dtk_tab<Dtk_EntityPtr> Dtk_OneCell::_AdditionnalGeometries

protected

Added geometries for Dtk_OneCell.

◆ _BorderBottomBlanked

Dtk_Int32 Dtk_OneCell::_BorderBottomBlanked

protected

◆ _BorderBottomColor

Dtk_RGB Dtk_OneCell::_BorderBottomColor

protected

◆ _BorderLeftBlanked

Dtk_Int32 Dtk_OneCell::_BorderLeftBlanked

protected

◆ _BorderLeftColor

Dtk_RGB Dtk_OneCell::_BorderLeftColor

protected

◆ _BorderRightBlanked

Dtk_Int32 Dtk_OneCell::_BorderRightBlanked

protected

◆ _BorderRightColor

Dtk_RGB Dtk_OneCell::_BorderRightColor

protected

◆ _BorderTopBlanked

Dtk_Int32 Dtk_OneCell::_BorderTopBlanked

protected

◆ _BorderTopColor

Dtk_RGB Dtk_OneCell::_BorderTopColor

protected

◆ _HasText

Dtk_bool Dtk_OneCell::_HasText

protected

◆ _Height

Dtk_Double64 Dtk_OneCell::_Height

protected

The real height (before and after mergers).

◆ _text

Dtk_CompositeText Dtk_OneCell::_text

protected

◆ _Width

Dtk_Double64 Dtk_OneCell::_Width

protected

The real width (before and after mergers).

◆ anchor

Dtk_Size_t Dtk_OneCell::anchor

protected

Defines the anchor texts.

◆ justification

Dtk_justication_type Dtk_OneCell::justification

protected

Text justification.

◆ min_Height

Dtk_Double64 Dtk_OneCell::min_Height

protected

The original height before mergers.

◆ min_Width

Dtk_Double64 Dtk_OneCell::min_Width

protected

The original width before mergers.

◆ nbCells_Left_Right

Dtk_Int32 Dtk_OneCell::nbCells_Left_Right

protected

Number of adjacent cells to the left or right.

◆ nbCells_Top_Bottom

Dtk_Int32 Dtk_OneCell::nbCells_Top_Bottom

protected

Number of adjacent cells at the top or bottom.

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ Dtk_OneCell() [1/3]

◆ Dtk_OneCell() [2/3]

◆ Dtk_OneCell() [3/3]

◆ ~Dtk_OneCell()

Member Function Documentation

◆ _CopyC()

◆ _InitC()

◆ _ResetC()

◆ AddAdditionnalGeometries()

◆ Delete_Text()

◆ DtkDynamicCast()

◆ DtkDynamicType()

◆ get_min_Height()

◆ get_min_Width()

◆ GetAdditionnalGeometries()

◆ getAnchor()

◆ GetBorderBottomBlanked()

◆ GetBorderBottomColor()

◆ GetBorderLeftBlanked()

◆ GetBorderLeftColor()

◆ GetBorderRightBlanked()

◆ GetBorderRightColor()

◆ GetBorderTopBlanked()

◆ GetBorderTopColor()

◆ getHeight()

◆ getJustification()

◆ getnbCells_Left_Right()

◆ getnbCells_Top_Bottom()

◆ GetText() [1/2]

◆ GetText() [2/2]

◆ getWidth()

◆ HasText()

◆ Merged_Cell_Horizontally()

◆ Merged_Cell_Vertically()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ set_min_Height()

◆ set_min_Width()

◆ setAnchor()

◆ SetBorderBottomBlanked()

◆ SetBorderBottomColor() [1/2]

◆ SetBorderBottomColor() [2/2]

◆ SetBorderLeftBlanked()

◆ SetBorderLeftColor() [1/2]

◆ SetBorderLeftColor() [2/2]

◆ SetBorderRightBlanked()

◆ SetBorderRightColor() [1/2]

◆ SetBorderRightColor() [2/2]

◆ SetBorderTopBlanked()

◆ SetBorderTopColor() [1/2]

◆ SetBorderTopColor() [2/2]

◆ setHeight()

◆ setJustification()

◆ setnbCells_Left_Right()

◆ setnbCells_Top_Bottom()

◆ SetText()

◆ setWidth()

Field Documentation

◆ _AdditionnalGeometries

◆ _BorderBottomBlanked

◆ _BorderBottomColor

◆ _BorderLeftBlanked

◆ _BorderLeftColor

◆ _BorderRightBlanked

◆ _BorderRightColor

◆ _BorderTopBlanked

◆ _BorderTopColor

◆ _HasText

◆ _Height

◆ _text

◆ _Width
