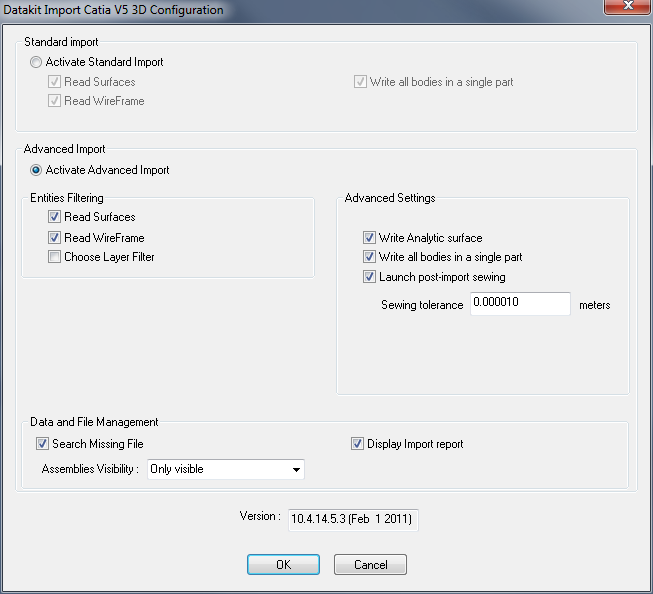

Importer Options

Activate Standard Import

• This option is more suitable for large files import that may have some limitations with the advanced import.

Activate Advanced Import

ENTITIES FILTERING

• Read Surfaces: read all surfacic entities.

• Read Wireframe: read all wireframe entities.

• Choose Layer Filter: displays a dialog box that let you choose the layer filter you want to apply.

ADVANCED SETTINGS

• Write analytic surfaces: enables to keep some analytical surface definition (revolution and extrusion).

• Write all bodies in a single part: creates a Solidworks Part file for every Catia V5 body, if unchecked.

• Launch post-import sewing: uses Solidworks sewing abilities after importing the model (given Sewing tolerance in meters).

DATA AND FILE MANAGEMENT

• Search Missing Files: allows you to specify search folders to look for missing parts or assemblies.

• Only visible / All as visible: if « All as visible » is activated, even hidden assembly nodes will be imported.

• Display Import Report : displays the log file, a summary of imported entities, in a dialog box at the end of the processing (CATPart only).

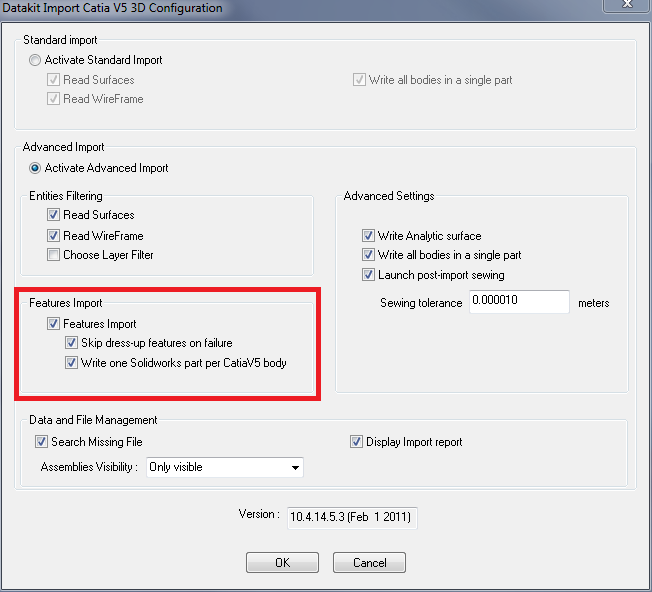

Activate Feature Import (SPECIFIC LICENCE) : Feature Import option is visible only when the "feature" specific licence is available.

FEATURES IMPORT : activates feature-based translator

• Skip dress-up features on failure : in case of failure during Dress-up Features translating (fillets, chamfers, drafts), just skip the feature instead of switching to BREP geometric mode (continues the execution as if nothing was wrong).
  Skipped features are marked as (SKIPPED) in the log file.

• Write one Solidworks part per CatiaV5 body : creates one part per CatiaV5 body (by default). This value should remain True, especially for large models.
